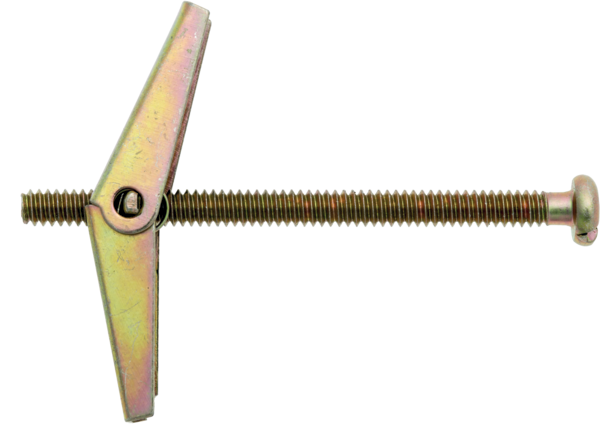

Toggle bolt/spring screw
Build your product in 7 steps :
Status
- Actif
Pronto AU Part #
- 10704747
- 10704749
- 10704750
- 10704752
Screw Ø (pouces)
- 1/8
- 3/16
Length (pouces)
- 2
- 3
Drilling Ø (pouces)
- 7/16
- 9/16
Wall thickness (mm)
- 15
- 40
Quantity
- 25
- 20
- 15
Yellow zinc plated.
Phillips® drive.
Application(s) :
Light to medium duty anchors.
Used in hollow walls (drywalls, ceiling plasteboard and concrete block) and hollow masonry applications).
-
Hollow materials
Methode of use :
Drill the recommended sized hole through the plasterboard.
Insert the screw through the fixture to be fastened and thread the toggle for a few turns. Fold the toggle wings and insert the anchor into the hole. The wings will spread behind the cavity wall.
Pull back on the fixture to hold the toggle in place against the reverse side of the cavity wall and tighten with a screwdriver, pulling the wings of the anchor firm against the cavity wall.
Advice :
A pre-drilled hole is required.
Spring toggle round head Ø 1/8 x 2'' yellow zinc plated steel (x 25)
